Description: Compressed Asbestos Fibre Jointing is a consistently uniformand resilient product. A price worthy quality of dependable performance, plus adaptability to many sealing requirements makes this 'STEAM' JOINTING the choice sheet packing of Plant Engineers and Maintenance men. CHAMPION STYLE 20 Jointings are developed for general purpose applications and this quality is applicable to a wide range of duties with less severe working conditions of temperature and pressure.

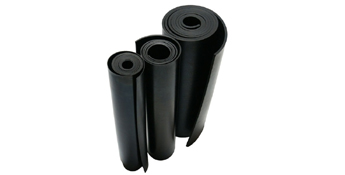

Which Rubber Do I Need? Rubber is probably the most common gasket material, and it comes in many different types. If you are unsure as to which rubber is best for your application then you can consult our gasket material selector, or our guide to rubbers. Alternatively, we are always happy to offer technical help and advice and so if you require assistance then please do not hesitate to contact us.

General Information About Rubbers Rubber is the most important class of materials for sealing in the medium temperature range (-50 C to +120 C). This is because rubbers rapidly return to their original shape when any deforming stress or load is removed.

Pure Teflon® packing rope is Flexible, almost completely chemical inertia, dimensional stable, low coefficient of friction and excellent resistance to compression. It is suitable for all the chemical compound, alternative & rotary motions shafts, rods, piston valves, steam, expansion joints. It is a Braided Packing made of pure P.T.F.E. Yarns.

APPLICATION: It is a cost-effective replacement of PTFE impregnated asbestos packings. PTFE 100% square packing is a self-lubricating, chemically inert, non-toxic, and a non-hazardous material. It is very flexible packing and provides more efficient sealing with very low friction characteristics. This packing can be used against corrosive chemicals, solvents, oils and petroleum by products and oxygen service widely used for water handling equipments, liquid oxygen pumps, valves etc.

Asbestos Fiber Rope are widely used in the heavy machinery industry in the processes of heat insulation of pipes and boiler sealing, hot blast valves, blue cap doors upto 350 C. Asbestos rope, type of popular sealing element in manufacturing equipments, handling heat such as furnaces, boilers and high temperature instruments. Asbestos ropes are manufactured using white crystal yarn twisted around in m/c.

Packing:

• 8.0 mm to 25 mm – 5 or 7.5kg,
• 32 to 50 mm -10, 20 or 25 kg.

We are delighted to offer Industrial Ceramic Fiber Wrapping Tape that are manufactured using high-quality ceramic fiber yarn. The tape, which is reinforced with fiberglass filament, finds applications in sectors, such as welding, foundry works, aluminium and steel mills, boiler insulation and seal, exhaust systems, shipyards, refineries, power pl Shields, Filtration Media, Electrical Insulation, Expansion Joint, Gaskets and Wrapping Material and more.ants and chemical plants. Its major uses include Fire Protection, Pipe Hanger Insulation, Insulation of Industrial Chimney, Radiant Heat.

Specifications:

• Available in a variety of thickness from 3 – 6mm
• Standard width of the Cloth is 25mm to 100mm
• Dimensions:3mm, 6mm thick in 25mm to 100mm width
• Ultimate Strength (≥ MPa) warp: 76Kgf/5cm Filling: 37Kgf/5cm
• Working Temperature:1260C
• Fiber Diameter: 2-3um
• Organic content: ≤15
• Density: 500 kg/m3.
