PVC GREEN HOSE - PIPE
RealOn PVC flexible Suction & Delivery Hoses are designed incorporating a rigid PVC spiral as an integral part of the soft PVC wall. The anti-shock rigid spiral imparts superior crush resistance to the hose. Specially formulated PVC compounds develops a top grade medium duty Suction & Delivery hose for meeting the challenging service conditions in Suction & Delivery of water for irrigation purpose agriculture with electric mono block and oil engine. Also for Suction & Delivery of saline water, light acids, alkalies and other chemicals except solvents for conveying of granules or fine particles of raw materials in processing industries in general this flexible hose can work with superior efficiency and offers more service life compared to rubber suction and delivery hoses.
ADVANTAGES:
- Light weight: Often only % that of Rubber Hose has which makes it easy to carry and install.
- Flexibility: The flexibility of hose is retained for many years, It can be bent as desired. No kinking or bulging even in the most severe working conditions.
- Resistance: It shows strong resistance in high pressure and most of the chemicals, light acids, alkalies excepting solvents. Ideal for high pressure suction & delivery of water.
- Weather proof: Easily Installed even to non-standard couplings.
- Smooth Bore : Allows fast flow.
| Nominal Size | Diameter | Bending Redius mm | Pressure ( at 30° c ) | Standard Lengths (mtrs.) | |||
| Inches. | mm | ID mm | OD mm | Working Pressure (kg/CM2) | Bursting kg/CM2 | ||
| 3/4 | 20 | 19.0* | 23.6** | 45 | 7.0 | 24.0 | 30/50 |
| 1 | 25 | 25.4* | 30.0** | 55 | 7.0 | 20.0 | 30/50 |
| 1 1/4 | 30 | 31.8* | 36.8** | 75 | 6.5 | 20.0 | 30/50 |
| 1 1/2 | 40 | 38.0* | 43.3** | 95 | 5.0 | 16.0 | 30/50 |
| 2 | 50 | 50.8* | 57.8*** | 122 | 4.0 | 16.0 | 30/45/50 |
| 2 1/2 | 65 | 63.5* | 72.0*** | 160 | 4.0 | 16.0 | 30/45/50 |
| 3 | 75 | 76.2* | 85.0*** | 272 | 3.5 | 15.0 | 30/36 |
| 4 | 100 | 101.2* | 112.2**** | 290 | 3.5 | 11.0 | 15/18/30 |
PVC HEAVY-DUTY SUCTION & DELIVERY HOSE - PIPE (Grey)
CONSTRUCTON & APPLICATIONS: RealOn PVC flexible Heavy-Duty Suction & Delivery Hoses are designed incorporating a rigid PVC spiral as on integral part of the soft PVC wall. The anti-shock rigid spiral imparts superior crush resistance to the hose. Specially formulated PVC compounds develops a top grade Heavy-Duty Suction & Delivery Hose for meeting the challenging service conditions. It is used in coal and Mineral mines, Stone & Lime quarries, Shipping, Sewage disposal, Aqua culture, Paper mills, Cement conveying, Chemical industries, Petrochemicals & Oil exploration, Fire fighting equipment, Constructional engineering, general industrial service etc.
ADVANTAGES:
- Resistance: It shows strong resistance to high pressure and external impacts and can easily withstand absolute vacuum too.
- Flexibility: No question of kinking or crushing even while in severe conditions and the hose is totally abrasion resistant.
- Light Weight: Our Heavy-Duty hoses are more efficient & lighter in weight than conventional multilayer and wire reinforced ply type rubber hoses which makes the handling much easier.
- Weather Proof: Resistant to sun, ozone and weather.
- Smooth Bore: Smooth inside surface assures a high flow rate.
| Nominal Size | Diameter | Bending Redius mm | Pressure ( at 30° c ) | Standard Lengths (mtrs.) | |||
| Inches. | mm | ID mm | OD mm | Working Pressure (kg/CM2) | Bursting kg/CM2 | ||
| 1 | 25 | 25.4* | 31.5* | 48 | 8.0 | 25.0 | 30 |
| 1 1/4 | 30 | 31.8* | 38.8* | 68 | 7.0 | 21.0 | 30 |
| 1 1/2 | 40 | 38.0* | 46.3*** | 70 | 5.5 | 18.0 | 30 |
| 2 | 50 | 50.8* | 60.8*** | 100 | 4.5 | 18.0 | 30 |
| 2 1/2 | 65 | 63.5* | 74.5*** | 120 | 4.5 | 18.0 | 30 |
| 3 | 75 | 76.2** | 87.2*** | 155 | 4.5 | 18.0 | 30 |
| 4 | 100 | 101.2*** | 114.2**** | 213 | 4.0 | 14.0 | 30 |
| 5 | 125 | 127.0*** | 141.0**** | 230 | 3.0 | 10.0 | 15/18 |
| 6 | 150 | 152.4*** | 169.4**** | 375 | 2.5 | 9.0 | 15/18 |
| 8 | 200 | 203.2*** | 2244**" | 600 | 2.5 | 8.0 | 4.5/6 |
| 10 | 250 | 254.2**** | 284.0**** | 1000 | 2.5 | 8.0 | 4.5/6 |
| 12 | 300 | 300.0**** | 112.2**** | 1000 | 2.5 | 8.0 | 4.5/6 |
Recommended maximum working temperature : 60/70°C Variation in ID/OD : {* = + 0.5} {** = + 1.0} {*** = + 1.5} {**** = ± 2.0}

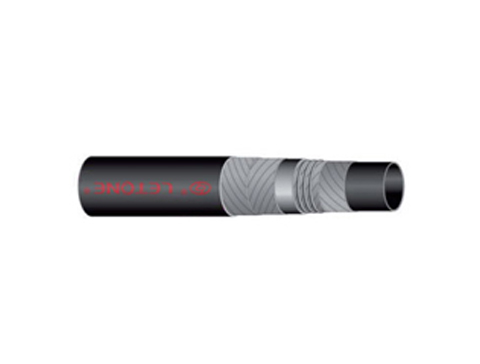

Chemical Hose Pipe
Application: hard wall hose, It is widely used in the petrochemical industry for the delivery of a wide range of high concentrations chemical products, combustible aromatics,hot oils and solvents.
Temperature: -25℃(-13℉) to +100℃(+212℉),depending on medium.
Tube: black, smooth, Viton(FKM) rubber.If you need working temperature exceeding 50C，please contact us.
Reinforcement: high strength synthetic cord plus helix steel wire.
Cover: black, smooth(wrapped finish), CR rubber,resistant to abrasion, aging ozone and oils.
Available upon request: 1.Different diameters 2.Different working pressures.

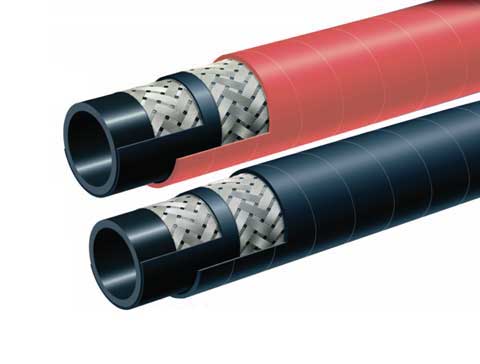

Steam hose
Cover: Red or black EPDM rubber, heat resistant, surface finish, pinhole technology
Reinforcement: high tension steel wire braid
Inner tube: black CIIR rubber, heat resistant, not used for steam cleaning
Working pressure: Constant pressure 18Bar (270PSI)
Temperature range: -40°C (-40°F) to +220°C (+430°F)
PVC Braided Hose Pipe
We are the manufacturer of PVC Braided Hose Pipe Plant with the combination of technology and performance in various models.
Specification of PVC Braided Pipe Making plant.
| Minimum-maximum Output | 30-100kgs/hr. |
| Size range of Hose Pipe | 6 mm –50mm inner dia. |
